Overview

Wireless InSite® Release 2.4 offers many enhancements, including a Communication System Analysis module, improved analysis of wideband signal propagation, modeling of atmospheric ducting effects and plane wave sources for modeling airborne and satellite based transmitters. Another new feature is the recently announced Real Time Module for obtaining very fast physics-based path loss predictions for communication links in urban environments.

Wireless InSite allows RF communications engineers to accurately analyze the impact of the physical environment on the performance of wireless communication systems. The software provides a broad range of site-specific predictions of propagation and communication channel characteristics in complex urban, indoor, rural and mixed path environments. Most of these results are derived from accurate solutions to the underlying EM wave propagation problem determined by the UTD (Uniform Theory of Diffraction) and FDTD (Finite Difference Time Domain) methods.

Application Fields

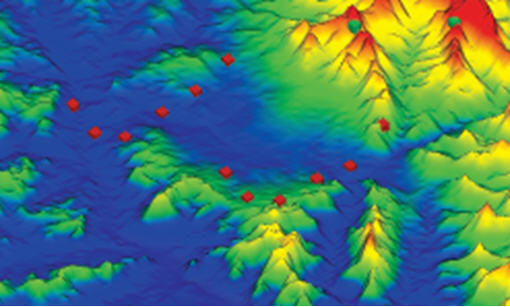

▪ Irregular terrain (the wild mountains, hills)
▪ suburbs

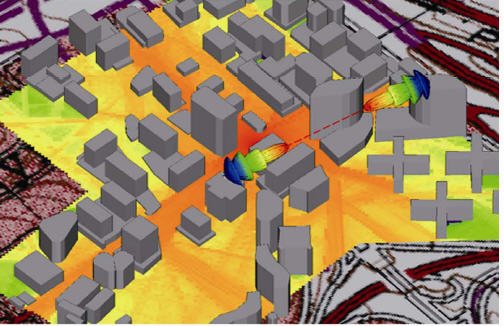

▪ City

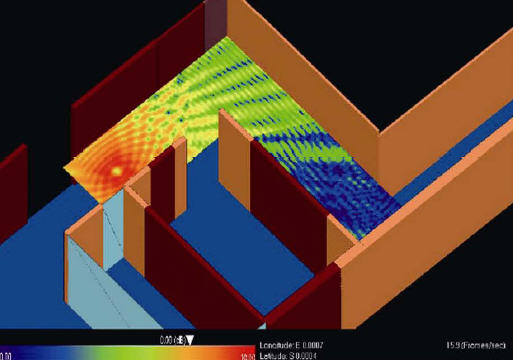

▪ Indoor

Features

▪ Output includes received power, electric field, delay spread, bit error rate, C/I, and power delay

   profile
▪ Calculations use 3D antenna patterns with full polarization and phase information
▪ Wideband and narrowband pulses
▪ Time and frequency domain output
▪ Identify outages in coverage using the communication channel analysis tool
▪ Import urban building data from the DXF and shapefile formats
▪ Import indoor floor plans from DXF format
▪ Import terrain elevation data
▪ Import vegetation land cover data
▪ Overlay output on top of maps and aerial photographs


Cases Studies

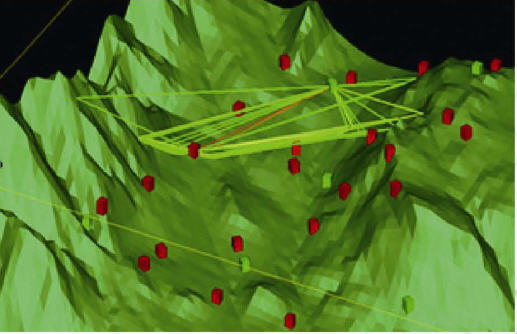

▪ Application of the wild mountain Shijiazhuang Case

▪ Dissemination of the Helsinki City Case

▪ Indoor dissemination case

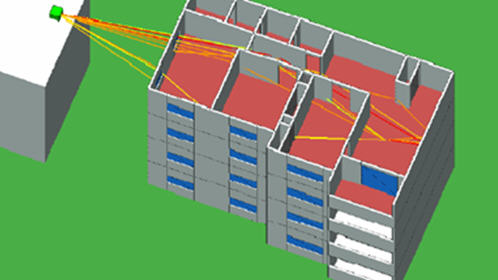

▪ outdoor to indoor spread cases
